New study: Solar power tower has less impact on bird populations than expected

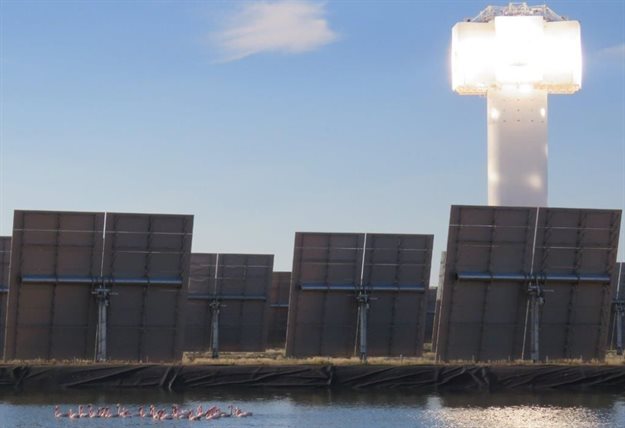

After completing the first birdlife-focused study at South Africa's only concentrating solar power tower, HP van Heerden says that it is possible to reduce the impact that concentrating solar power (CSP) towers might have on bird populations by managing the infrastructure well, especially during downtime when it is not generating power.

Van Heerden, who received his MSc in Conservation Ecology from Stellenbosch University earlier this year, studied the birdlife around the Khi Solar One facility near Upington in the Northern Cape. His fieldwork showed that the solar tower does have an impact on the typical bird populations found in the area throughout the year or seasonally, but less so than was expected. Various species make their home in and around the facility.

“When considering renewable energy options, one must always consider the pros and the cons for the environment and the impact it may have on the plants and animals,” Van Heerden explained.

Fieldwork


Van Heerden took his lead from similar studies previously done in the US and Spain. He did surveys on the solar tower site of 315 hectares, as well as on adjacent open veld. It stands amid typical Nama Karoo veld in an area that receives around 150mm of rain per year.

Throughout two seasons he recorded all bird species in sight:
  • 57 different species in total
  • 2,380 individual birds
  • In winter 49 species were recorded, none of which were of conservation importance.
  • The only birds of conservation importance noted in summer were lanner falcons (a vulnerable species).
  • More species (53 against 45) were observed in the adjacent veld than around the solar tower site itself.
  • Most species flew no higher than 10m, the exception being pied crows, Egyptian geese and korhaan.
  • Birds were less inclined to breed on the site and around the buildings. On the site itself, four sociable weaver nests and those of a korhaan, two dove species, a Namaqua sandgrouse and a southern common fiscal were recorded.

The erection of the solar tower had an influence on the composition of bird species typically found in the area. Evaporation ponds attracted water birds such as flamingos which had not previously been found on the farm where it had been built. Wood- and shrubland species, as well as species usually found in urban areas, are nowadays found in greater numbers around the tower area than in the adjacent veld.

Impact


Van Heerden also surveyed the area for possible fatalities and injuries:
  • 324 injured or fatally injured birds (representing 34 species) were recorded around the greater solar tower.
  • Of these, 285 were found inside the heliostat area (the so-called solar field) and the rest around the power generation unit and the evaporation ponds.
  • 61% of incidences were caused by birds colliding into structures, while 14% of birds were singed.
  • Most dead birds were seed-eating resident birds like the red-billed quelea and lark-like bunting which are fairly common in the area.
  • Apart from one lanner falcon and one white pelican, no birds of conservation importance were among the casualties.
  • Camera traps showed that some of the dead birds were eaten by pied crows, Cape foxes and yellow mongooses.

“Most birds collided against structures in the area where the freestanding heliostats are, and mostly along the lower quarter of these structures, roughly 3.2m above the ground, involving the last two panels of each heliostat,” Van Heerden explained. “That’s at about the normal flight height of birds like red-headed finches and lark-like buntings.”

Most incidents occurred early in the morning or around sundown when birds are most active.

According to Van Heerden, the collisions possibly occurred when the heliostats stand at a 90-degree vertical position for a limited period during sunrise and after sunset. “It creates the illusion of an unbroken landscape and can completely confuse the birds,” he reasoned.

Most often it was migrating birds and species that hunt their prey in the air that were fatally singed during summer months by the so-called solar flux – a concentrated beam of sunlight that radiates from the heliostats past the central receiver and can reach temperatures up to 800 degrees Celsius.

“The bright light radiating from the mirrors of the towers can attract insects and, in the process, also insect-eating birds,” continued Van Heerden. “When something like a moving bird perhaps flies through the solar flux, it can be singed because the sunlight from the heliostats collides with an object and is converted into thermal energy.”

Most of the singeing incidents were recorded during a time that the heliostats were not in use, owing to power plant downtime. The heliostats stood in a standby position, which resulted in a kind of halo effect and singeing (solar flux) in the air above the tower.

Managing casualties


About some media reports from the US that claim that up to one bird per minute (which would amount to 28,000 birds per year) could die due to solar towers, Van Heerden said: “My findings do not support such claims. These are more likely made based on anecdotal evidence rather than good data.”

“Based on data from the current study, these claims seem exaggerated,” agrees Prof Karen Esler, one of van Heerden’s study leaders and chair of Stellenbosch University’s Department of Conservation Ecology and Entomology. “For perspective on the real impact of solar towers, one should compare bird fatalities around the site with those caused by other human activities in the area, such as farming, mining or the road network.”

A study conducted in 2014 estimated that between 98 million and 980 million birds die annually in the United States after colliding into buildings or windows. Up to 3.7 billion are caught by cats, and between 89 million and 340 million die because of traffic-related incidences.

“Some impact by solar towers on the environment is almost unavoidable, but can be minimised if managed right,” reasons Van Heerden.

He therefore recommended the following to operators of CPS facilities:
  • Heliostats should not be positioned at exactly 90 degrees during early mornings and late afternoons when birds are most active.
  • The intensity of the concentrated energy or solar flux radiating out above solar towers could be reduced when the heliostats are in standby position and not operational.
  • Heliostats should preferably be set in a horizontal position when solar power is not being generated by the facility.
